China gi sheet galvanized steel coil

Short Description:

Material : SGCC , SGCH , DX51D+Z
Certificate : ISO9001 , SGS , SAI , BV , etc
Thickness : 0.12mm-0.7mm, Thickness tolerance:±0.02mm
Width : 600mm-1250mm , Width tolerance:-0/+3mm Length: 1.8m to 12m

  • Port: Tianjin / Qingdao
  • Sample: Free Sample
  • Service: Pre-shipment Inspection at Spot
  • Product Detail


    Product Tags

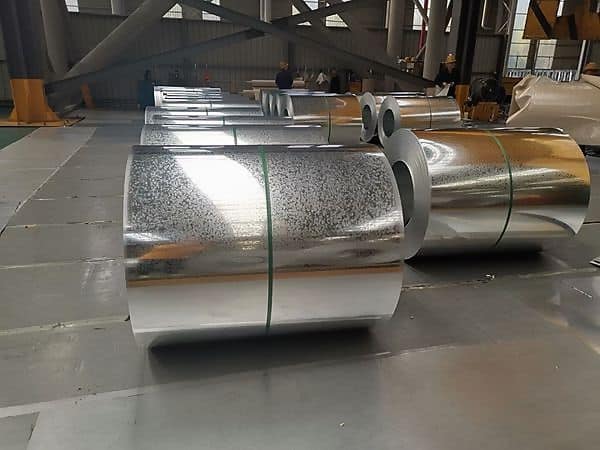

    Galvanized steel is defined as a carbon steel sheet coated with zinc on both sides. Hot dip Galvanized steel coils are widely used in the construction industry, as raw material for the production of corrugated panels, fencing products, drywall panel profiles, ventilation systems etc. Recommended for both outside and inside usage, galvanized steel has a high resistance to corrosion in different environments, due to a protective layer of zinc of 30 – 275 grams per squaremeter

    Product specification

    Standard AISI,ASTM,GB,JIS Material SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D
    Thickness 0.115-1.2mm Width 600-1250mm
    Tolerance "+/-0.02mm Zinc coating 60-275g/m2
    Coil ID 508-610MM Coil Weight 3-8 tons
    Technique Hot rolled, cold rolled Package seaworthy package
    Certification ISO 9001-2008,SGS,CE,BV MOQ 25 TONS (in one 20ft FCL)
    Delivery 15-30 days Monthly Output 10000 tons
    Surface treatment: oiled,passivation or chromium-free passivation, passivation+oiled, chromium-free passivation+oiled, resistant to fingerprints or chromium-free resistant to fingerprints
    Spangle regular spangle,minimal spangle, zero spangle,big spangle
    Payment 30%T/T in advanced+70% balanced;irrevocable L/C at sight
    Remarks Insurance is all risks and accept the third party test

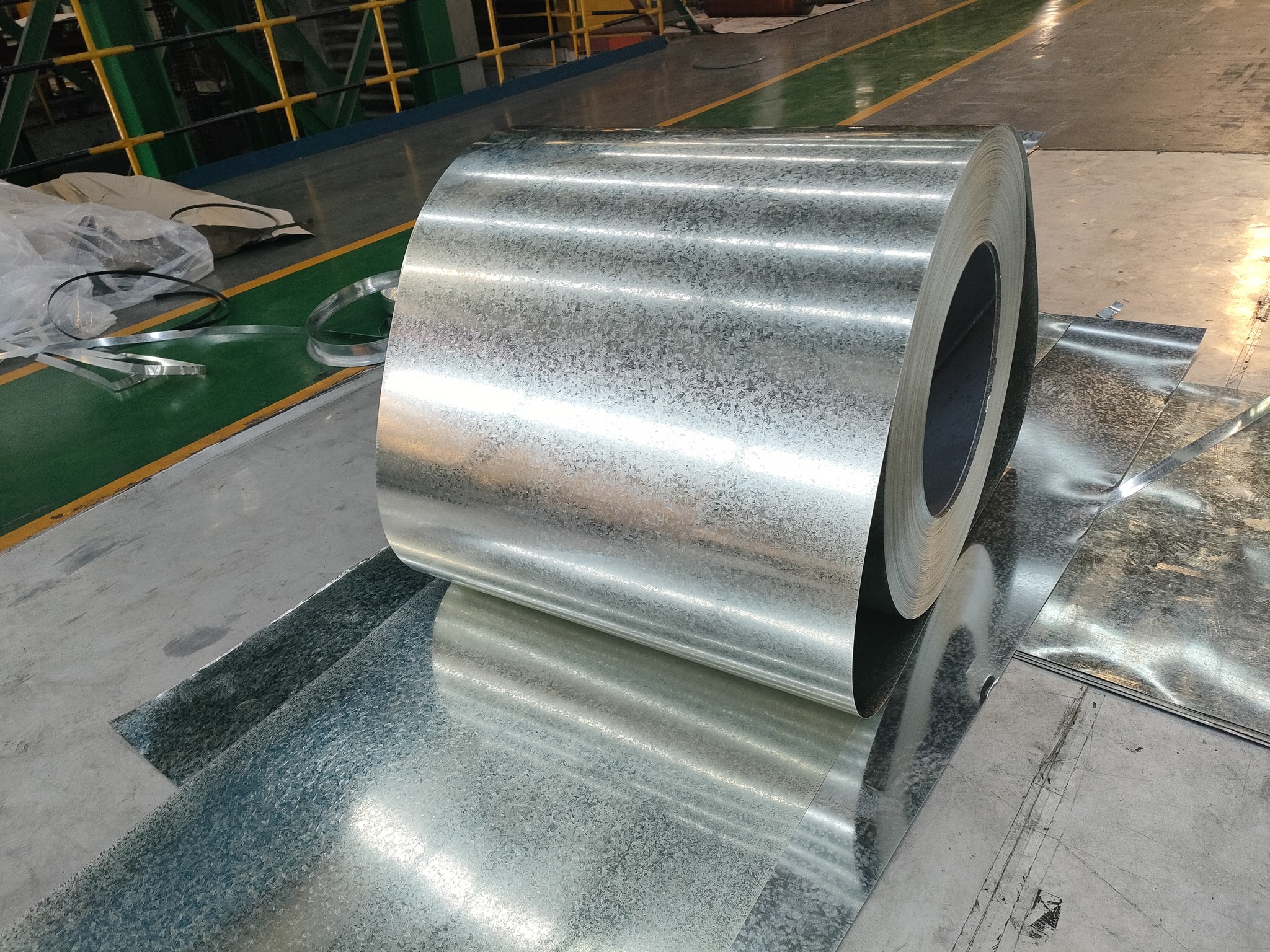

    Galvanized Steel Coils are produced through a process of metal coating which involves passing cold rolled coils through a kettle containing molten zinc. This process ensures adhesion of Zinc to the surface of the steel sheet. The Zinc Layer provides excellent corrosion resistance and prolong service life.

    Galvanized steel plate is to prevent the surface of the steel plate from being corroded and prolong its service life. The surface of the steel plate is coated with a layer of metal zinc, which is called galvanized steel plate.

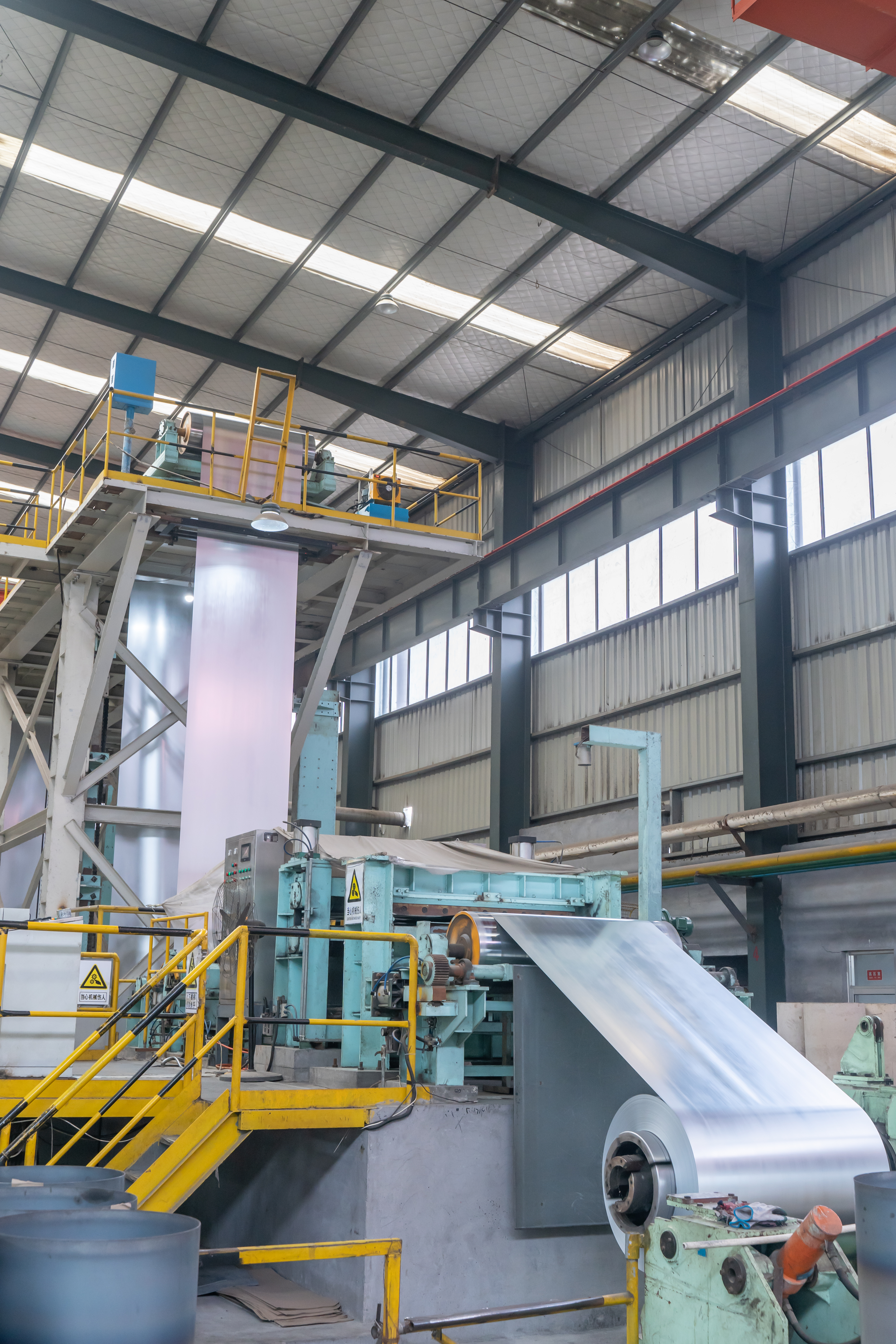

    The production line

    Galvanized production line adopts magnesium steel hot dip galvanized process. This process takes cold rolled steel coil as raw material, including cleaning, drying, annealing, galvanizing, cooling,finishing and passivation and then coiling to finished product.


    Our production line enjoy high level of continuous,accurate,large-scale and automatic. The product is widely used in industrial. agriculture and construction areas. When the steel plate surface is coated with zinc,it obtains the advantages of good corrosion resistance, high strength and easy processing etc.

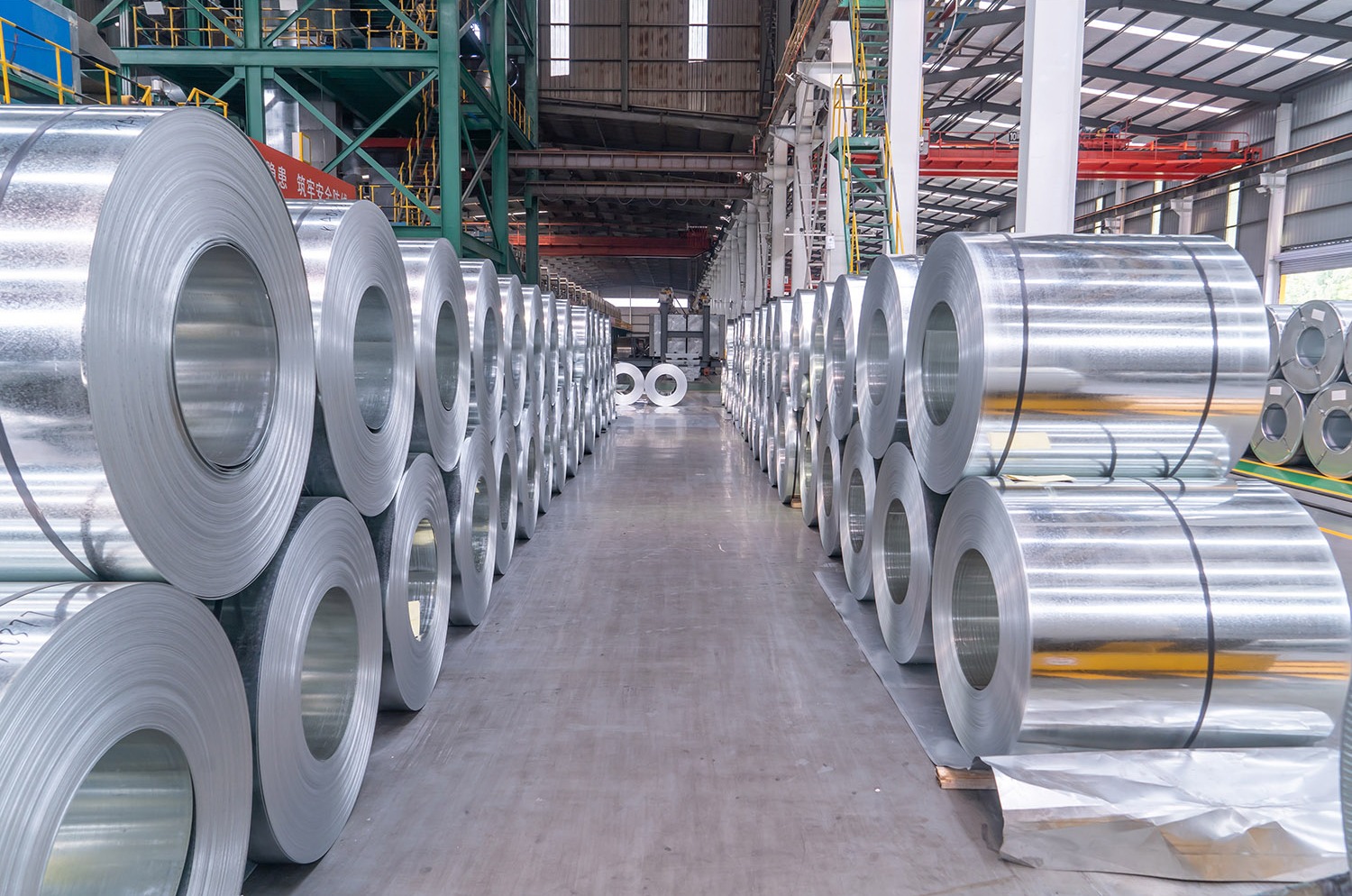

    factory tour (14)
    factory tour (11)
    factory tour (12)

    Advantages of Galvanized

    *Atmospheric corrosion resistance of zinc layer
    *Not easy to rust, long life
    *High temperature oxidation resistance
    *Easy to process
    *Strong hardness, wear resistance
    *The incision is well protected
    *Prevents rust through cathodic protection

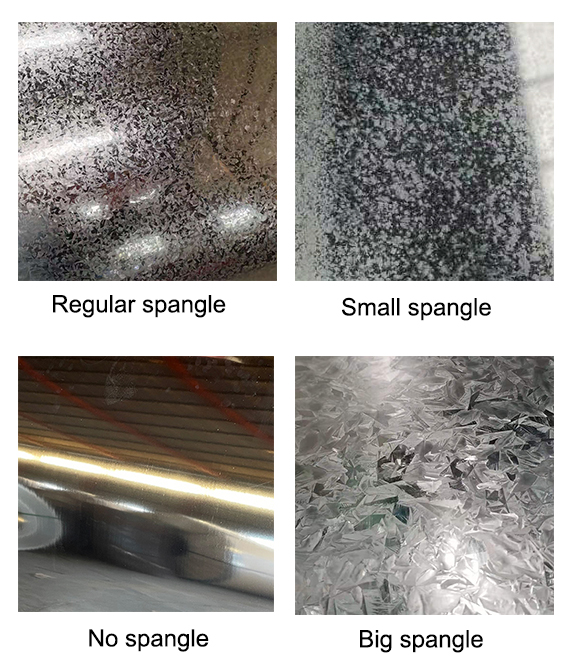

    After the hot-dip galvanized steel sheet is pulled out of the zinc pot, the appearance of the crystal grains formed as the zinc layer cools and solidifies is called spangles. The size, brightness and surface morphology of spangles depend on a series of factors, but they are mainly related to the composition of the zinc layer and the cooling method.Galvanized steel coil has the advantages of uniform coating, strong adhesion and long service life.

    Applicable scene

    Hot-galvanized sheet and its alloy sheet have excellent and ideal anti=corrosion, molding and coating functions and are used in industried as construction, automobile, metallurgy and electrical appliances, In construction industry, thr product is mainly for roof,door&window, roller shutter door, ceiling keel frame, etc; In automobile industry, it is mainly for body sheel, chassis, door, decklid, fuel tank, dasher, etc; In metallurgy industry, it is mainly for steel billet, color-coated plated plate, etc; In electrical appliance, It is mainly for fridge seat, shell, freezer and kitchen equipment. The company has set up350000T/Y continuous galvanizing equipment, with UEC technique and smoothing, straightening, passivating and coating functions to produce 0.13-1.2thickness, 700-1250width various galvanzied sheets.

    Applicable scene


    Steel coils are usually wrapped with waterproof kraft paper and plastic film, and wrapped with steel plates. The GI steel plate is covered by a locking steel band. In order to fix it during transportation, we will use wooden pallets, if you have special needs, please contact us!

    Package 3 layers of packing, inside is kraft paper, water plastic film is in the middle and ouside
    GI steel sheet to be covered by steel strips with lock, with inner coil sleeve .
    Monthly Output 10000 tons
    Remarks Insurance is all risks and accept the third party test
    Loading Port Tianjin/Qingdao/Shanghai Port
    Packaging & Shipping


    We are manufacturer and we have our own factory, you can get a competitive price with high quality,More than 10 years’ professional producing experience,BV, ISO certificates and SGS test can be provided to assure the quality of our products.

    Customer satisfaction is our pursuit! Good reputation in this industry due to our high quality products and service.

    grade standard galvanized steel coil


    Our personnel are generally in the spirit of “continuous improvement and excellence”, and together with the outstanding top quality merchandise, favorable price tag and fantastic after-sales solutions, we try to gain every single customer’s rely on for China Building Material, Steel, During the short years, we serve our clients honestly as Quality First, Integrity Prime, Delivery Timely, which has earned us an outstanding reputation and an impressive client care portfolio. Looking forward to working with you Now!



    Before-Sale service:
    1.ISOVerified Ouutstanding Manufacturer.
    2.The third nparty party inspection:SGS,BV,CE,COC,AI and other.
    3.Flexible Payment:T/T,LC,O/A,CAD,DAP,KUNLUN Bank.
    4.Sufficient Stock.
    5.Quick Delivery Time,Long time price validty.
    6.Tracking picture of transport:Production,Loading and reinforcement loading Picrures.
    7.Rich experience Professioal Sale Team.
    After-Sals service:
    1.Quality Guarantee after Receiving the Goods:Offer money returm or Ship new products for free if any pronlems happen.
    2.Technical Guidance for further Processing.
    3.VIP Service and Free Order after Accumulated Order Quantity.

  • Previous:
  • Next:

  • Q: Are you trading company or manufacturer ?
    A: We are factory for galvanized steel coil, Aluzinc steel coil, PPGI and roofing sheets.

    Q: How about your quality?

    A: Our quality are good and stable. The Quality Certificate will issued for each shipment.

    Q:Where is your main market ?
    A: Our main market is in Middle east, Africa, Southeast Asia, India,Japan,etc.

    Q: What is your terms of payment ?
    A: 30% T/T in advance ,balance before shippment or 100% L/C at sight.
