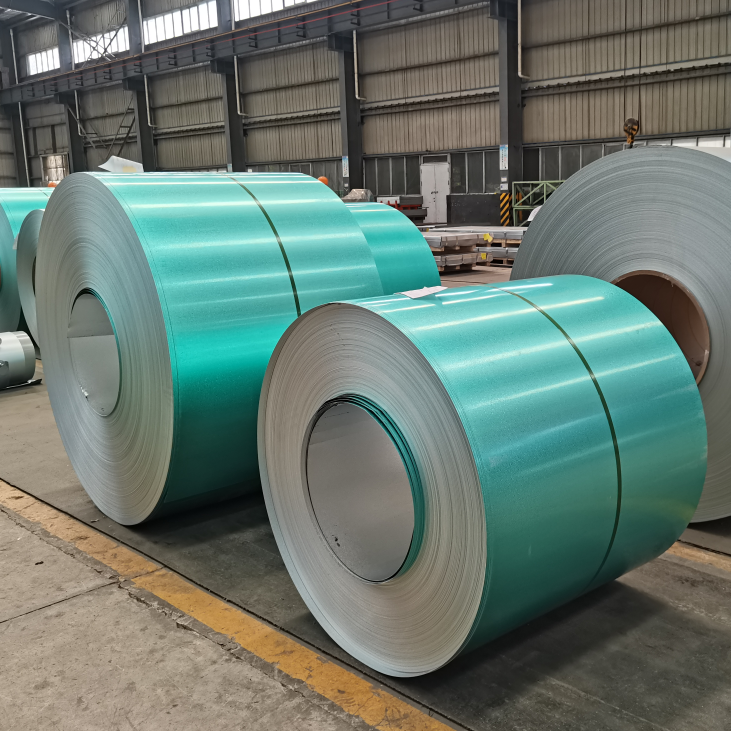

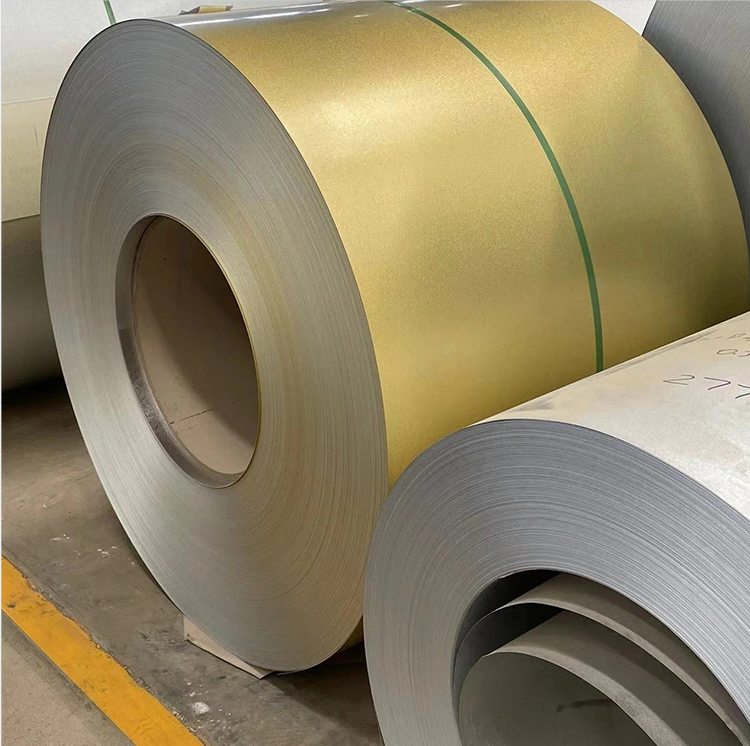

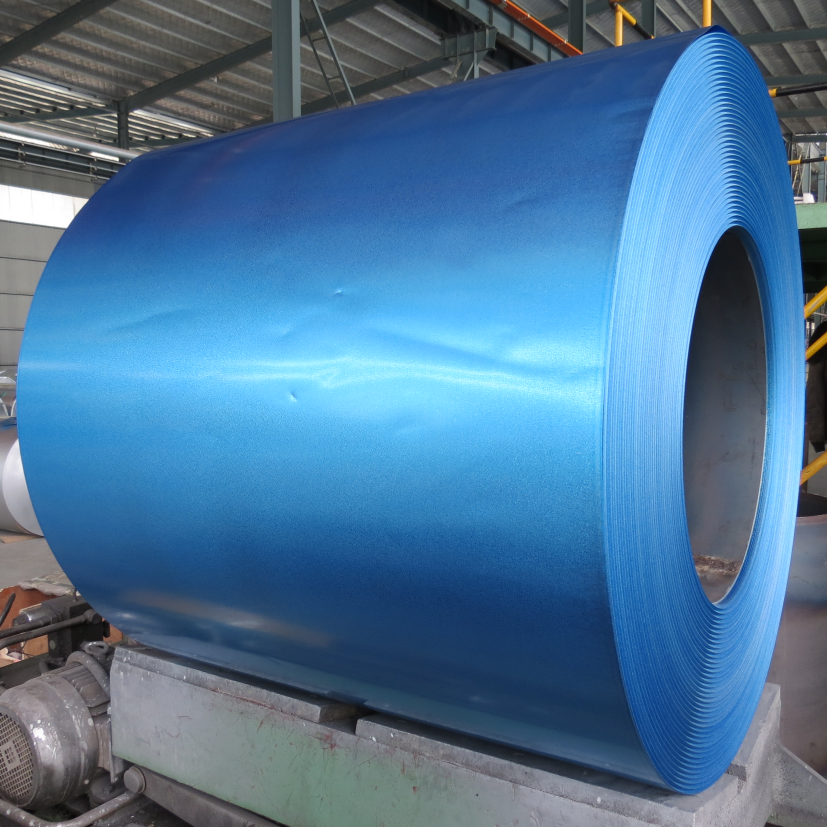

Galvalume Steel Coil

Short Description:

Material : SGCC , SGCH , DX51D+Z
Certificate : ISO9001 , SGS , SAI , BV , etc
Thickness : 0.12mm-0.7mm, Thickness tolerance:±0.02mm
Width : 600mm-1250mm , Width tolerance:-0/+3mm

  • Port: Tianjin / Qingdao
  • Sample: Free Sample
  • Service: Pre-shipment Inspection at Spot
  • Product Detail


    Product Tags

    Construction building material galvalume steel coil  (3)

    Production Decription

    Standard AISI,ASTM,GB,JIS Material SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D
    Thickness 0.13-1.2mm Width 600-1250mm
    Tolerance "+/-0.02mm Zinc coating 60-275g/m2
    Coil ID 508-610MM Coil Weight 3-8 tons
    Technique Hot rolled, cold rolled Package seaworthy package
    Certification ISO 9001-2008,SGS,CE,BV MOQ 25 TONS (in one 20ft FCL)
    Delivery 15-30 days Monthly Output 10000 tons
    Surface treatment: oiled,passivation or chromium-free passivation, passivation+oiled, chromium-free passivation+oiled, resistant to fingerprints or chromium-free resistant to fingerprints
    Spangle regular spangle,minimal spangle, zero spangle,big spangle
    Payment 30%T/T in advanced+70% balanced;irrevocable L/C at sight
    Remarks Insurance is all risks and accept the third party test


    Galvalume Steel Coil is composed of 55% aluminum, 43.4% zinc, and 1.6% silicon by weight. The production process of Galvalume sheet is similar to that of galvanized steel sheet and Galvalume sheet, which is a continuous molten coating process. The Galvalume steel sheet with 55% aluminum-zinc alloy coating has better corrosion resistance than galvanized steel sheet of the same thickness when exposed to the same environment on both sides.

    Benefits of Galvalume Steel
    Handles the heat: Performs well above 300 °C
    Thermal reflexes:The heat reflectivity of Al Zn steel plate is very high, which is two times that of galvanized steel sheet.
    Protects against corrosion: An aluminum layer shields the steel’s interior
    Easy to paint: Galvalume steel offers the perfect adhesiveness to make your finish attractive
    Surface:color, chromated, skin pass, anti finger print etc.

    Resistant fingerprint“AFP”

    Anti-fingerprint is a composite coating board obtained after anti-fingerprint treatment on the surface of galvalume steel. Fingerprint-resistant steel is the earliest material to pass the environmental protection certification. It is named "fingerprint-resistant" because the surface will not leave fingerprints when touched with clean fingers. The surface of fingerprint-resistant steel is smooth and smooth with small tolerances.
    In the production process of home appliances, due to the requirements of the process, many parts are touched by workers many times, and the sweat stains on the hands of the workers form pollution on the surface of the parts, which affects the appearance, so the research and development of anti-fingerprint.

    Resistant fingerprint is also divided into blue, yellow, transparent, etc., can be customized according to customer needs.


    Production Process
    Uncoiling-entrance looper-cleaning and rolling-annealing furnace-zinc pot-drying-water cooling-passivation machine-angle pulling machine-passivation process (fingerprint-resistant liquid)-export work Set - winding

    production process 3
    factory tour (14)
    factory tour (11)
    factory tour (12)


    Building & Construction

    Roofing; Terrace; Window Frame; Door

    Rolling-up Door; Shutter; Mobile House;Interior Decorations

    Wall; Door Frame; Steel Structure; Screen; Ceiling;Elevator; Household Appliances

    Fridge; Washing Machine; Microwave Oven; Air-Conditioner; Duplicating


    Auto Panel; Interior Decorative Panel; Carriage Panel


    Package 3 layers of packing, inside is kraft paper, water plastic film is in the middle and ouside
    GI steel sheet to be covered by steel strips with lock, with inner coil sleeve .
    Monthly Output 10000 tons
    Remarks Insurance is all risks and accept the third party test
    Loading Port Tianjin/Qingdao/Shanghai Port
    Packaging and Transportation


    We are manufacturer and we have our own factory, you can get a competitive price with high quality,More than 10 years’ professional producing experience,BV, ISO certificates and SGS test can be provided to assure the quality of our products.

    Customer satisfaction is our pursuit! Good reputation in this industry due to our high quality products and service.

    grade standard galvanized steel coil


    Our personnel are generally in the spirit of “continuous improvement and excellence”, and together with the outstanding top quality merchandise, favorable price tag and fantastic after-sales solutions, we try to gain every single customer’s rely on for China Building Material, Steel, During the short years, we serve our clients honestly as Quality First, Integrity Prime, Delivery Timely, which has earned us an outstanding reputation and an impressive client care portfolio. Looking forward to working with you Now!



    Before-Sale service:
    1.ISOVerified Ouutstanding Manufacturer.
    2.The third nparty party inspection:SGS,BV,CE,COC,AI and other.
    3.Flexible Payment:T/T,LC,O/A,CAD,DAP,KUNLUN Bank.
    4.Sufficient Stock.
    5.Quick Delivery Time,Long time price validty.
    6.Tracking picture of transport:Production,Loading and reinforcement loading Picrures.
    7.Rich experience Professioal Sale Team.
    After-Sals service:
    1.Quality Guarantee after Receiving the Goods:Offer money returm or Ship new products for free if any pronlems happen.
    2.Technical Guidance for further Processing.
    3.VIP Service and Free Order after Accumulated Order Quantity.

  • Previous:
  • Next:

  • Q: Are you trading company or manufacturer ?
    A: We are factory for galvanized steel coil, Aluzinc steel coil, PPGI and roofing sheets.

    Q: How about your quality?

    A: Our quality are good and stable. The Quality Certificate will issued for each shipment.

    Q:Where is your main market ?
    A: Our main market is in Middle east, Africa, Southeast Asia, India,Japan,etc.

    Q: What is your terms of payment ?
    A: 30% T/T in advance ,balance before shippment or 100% L/C at sight.
